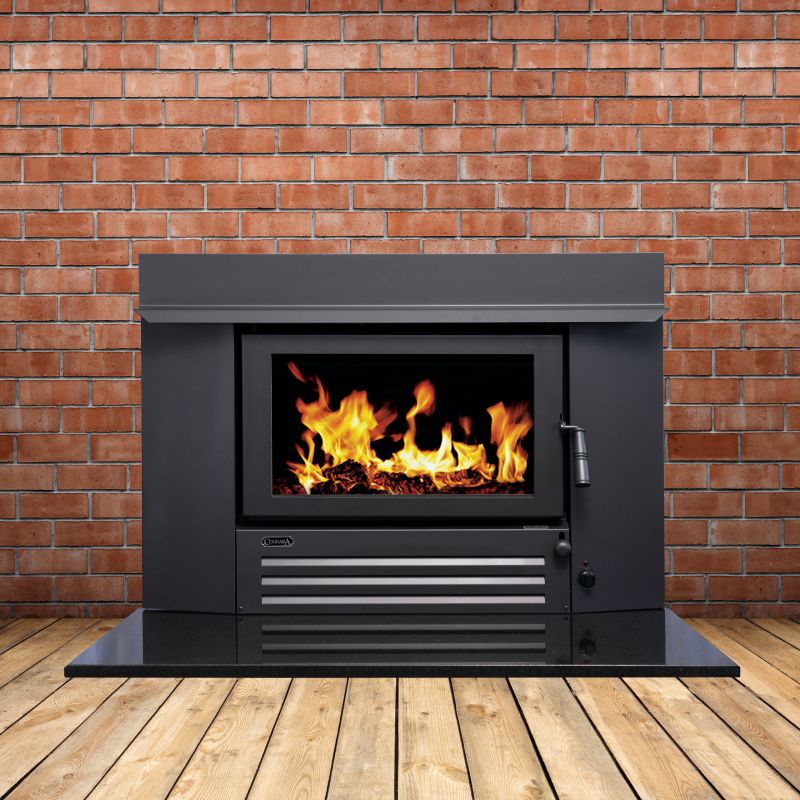

Coonara Settler I600
Coonara Settler I600
The Settler I600 is a finely crafted woodheater that will heat up to 28 squares* and will add elegance to your fireplace. With a large self‑cleaning viewing window, cast iron liners and 3 speed fan, it will provide optimum warmth.
Where tradition meets innovation.
• Australian made and owned
• Glass size 562mm wide 312mm high
• 3 speed fan included - must be used while heater is operating. Refer Owners Manual
• Standard Colour – charcoal
• Durable cast iron lined box
• 10 year firebox warranty
Specifications
Specifications
HEATING CAPACITY UP TO SQUARES:
28 Squares
280 Square Metres
PARTICULATE EMISSIONS (G/KG):
1.2 G/Kg
AVERAGE HEATING EFFICIENCY:
62.0
AVERAGE PEAK POWER (KW):
12.0Kw
FIRE BOX DIMENSIONS (MM):
595H x 695W x 470D
OVERALL DIMENSIONS (MM):
735H x 1100W x 580D
BACK OF HEATER TO CENTRE OF FLUE (MM):
160
CLEARANCE TO COMBUSTIBLE MATERIALS (MM):
Rear: 25
Side: 25
(When using zero clearance box)
HEARTH DISTANCE (mm):
Either side of door opening: 200
Front: 450
DESPATCH WEIGHT (KG):
173
