ARROW INBUILT

Arrow Inbuilt Heater
 Arrow inbuilt heaters are available in two sizes and performance levels that cater for homes up to 35 squares*.
Both inbuilt heaters have identical features and the same high standards of construction, durability and longevity.
Both inbuilt heaters each come with a powerful 3 speed fan for maximum heat distribution.
Arrow inbuilt woodheaters also come standard with performance enhancing cast iron fire box liners and cast iron grates, plus the convenience of the easy to use ash pan, which means you need never let the fire go out.

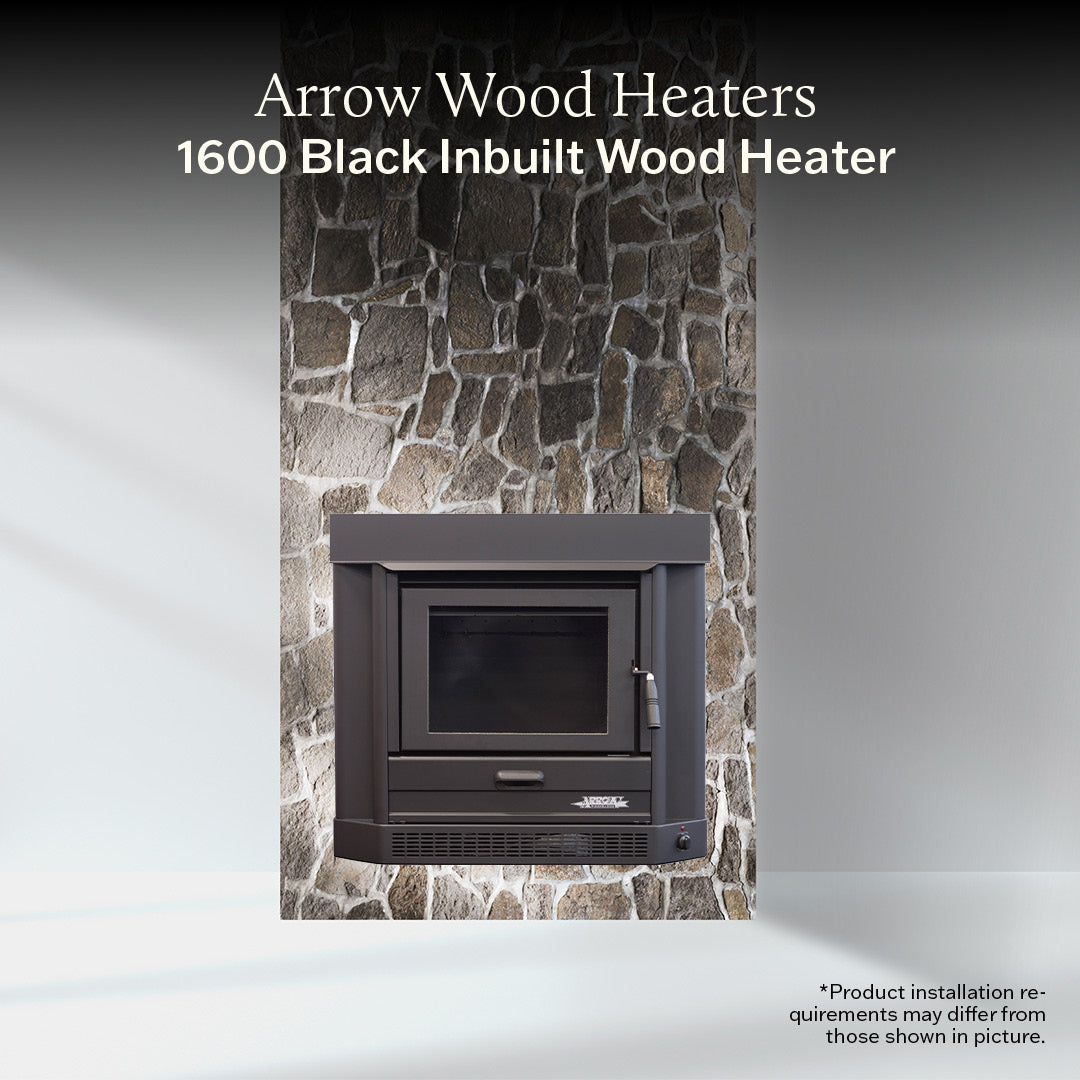

Model: Inbuilt 1600

• With Ashpan
• Heating Area: 25 squares
• Fan Forced: 3 Speed Fan
• Emission: 1.0 G/Kg
• Heating Efficiency: 65%
• Overall Dimensions: Height: 814mm Width: 900mm Depth: 476mm
• Firebox Dimensions: Height: 698mm  Width: 556mm Depth: 335mm
• Clearance to Combustible: Rear (Brick fire place only) Top 500mm Side: 15mm
• Hearth Distance: Either Side of Door Opening (107mm) x Front (450mm)

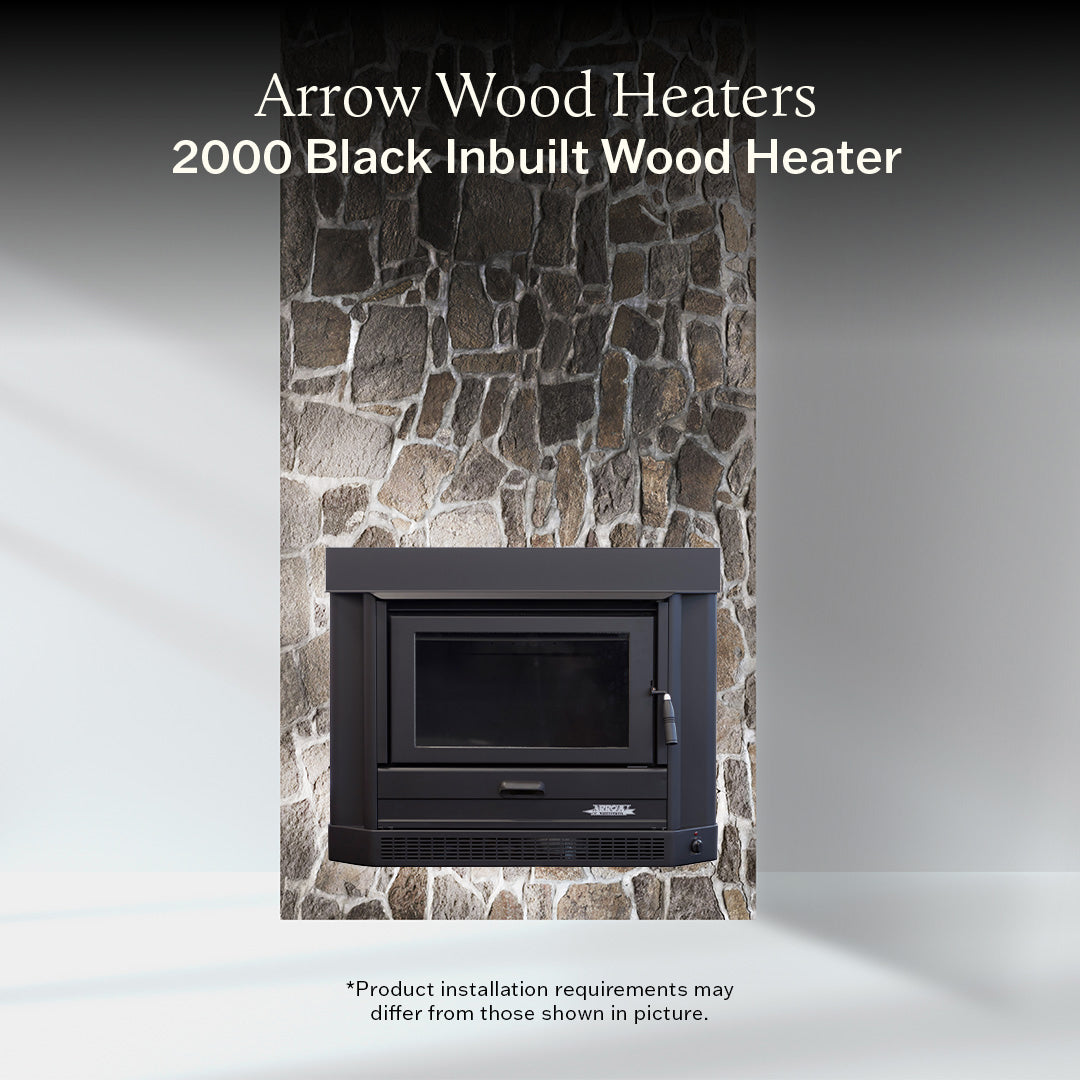

Model: Inbuilt 2000

• With Ashpan
• Heating Area: 35 squares
• Fan Forced: 3 Speed Fan
• Emission: 1.0 G/Kg
• Heating Efficiency: 60%
• Overall Dimensions: Height: 814mm Width: 1028mm Depth: 532mm
• Fire Box Dimensions: Height: 698mm Width: 690mm Depth: 390mm
• Clearance to Combustible: Rear (Brick fire place only) Top: 500mm Side: 20mm
• Hearth Distance: Either Side of Door Opening: 155mm  Front: 470mm

Since it’s introduction in 1981, Arrow woodheaters have set the benchmark for solid, reliable, effective wood heating that is timeless.
Continuing product development has seen significant improvements in performance, efficiency and low emissions.
Arrow’s enduring traditional styling and rugged heavy duty construction ensures years of unparalleled heating performance in a very practical manner.
 Greater Warmth
Arrow woodheaters are unique. The fully welded steel plate firebox is fitted with performance enhancing cast iron liners for greater heat retention in the firebox and
transfer of heated air into the home.
 Optimum Efficiency
Arrow woodheaters have a 3-way air induction system to the firebox that provides for a complete burn of the fuel for optimum heat output. This 3-way air system also improves combustion even when the fuel is less than ideal.
The standard 3 speed fan ensures maximum heat distribution, effectively heating your home.
The Arrow Triple-burn Combustion Design
Primary combustion air enters at the base of the firebox, which provides rapid ignition and quicker heat output.
Secondary pre-heated fresh air is drawn into the firebox via tubes and an air wash that directs air over the inner door glass that not only ignites unburnt gases but keeps the door glass clean for a better view of the fire.
The introduction of further pre-heated fresh air immediately below the baffle plate at the hottest part of the fire provides almost complete combustion and further reduces emission levels.
 Easy Cleaning
Underneath the grate is a large ash drawer. After Arrow’s Triple Burn fire has effectively burnt all the wood, the miniscule remaining ash falls through the grate into the drawer.
 You simply empty this drawer around once a week (or less). You can empty it while the fire is going to give you 24-hour warmth all winter. There is no need to extinguish the fire and then sweep and shovel out the ash bed as in other heaters.
 Easy Control
 A finger tip slide control allows you to set the air flow to the base of the fire. By small
adjustments you can achieve your perfect burning rate and maintain overnight burning to keep your home warm for cold winter mornings.
 Longer Life
 The thick cast iron ported grate forms part of the cast iron lining system inside every Arrow steel firebox. Cast iron lasts up to five times longer than firebrick and is more effective in transferring the heat from the firebox into your home.
